SAUBERTAC NANO-20/20K Antibacterial Deodorizing Agent
SAUBERTAC NANO-20 effectively neutralizes malodor components in perspiration, including ammonia and acetic acid. It is a deodorizing finishing agent for textiles whose nanoscale active deodorizing component provides excellent laundering durability.
SAUBERTAC NANO-20K is an antibacterial deodorizing finishing agent for textiles that combines SAUBERTAC NANO-20 with an antibacterial agent. In addition to neutralizing unpleasant odors, its antibacterial action suppresses odors caused by bacterial growth.
Characteristics
|
SAUBERTAC NANO-20/20K (Primary Agent) |
A-400K (Companion Resin) |
S-10 (Companion Softener) |
|
|---|---|---|---|
| Composition |
Inorganic metal oxide Phenol-amine compound* |
Acrylic resin | Amino-modified silicone oil |
| Appearance | White dispersion | White emulsion | Pale-yellow translucent liquid |
| Ionic Character | Anionic | Anionic | Weakly cationic |
| Solubility | Dispersible in water of any hardness | Miscible with water of any hardness | Miscible with water of any hardness |
| Average Particle Size | Approx. 500 nm | − | − |
Features
* Rapidly neutralizes perspiration odor.
* Nanoscale particles penetrate into fibers, providing excellent laundering durability.
* Minimal settling of the deodorizing component in the treatment bath enables stable processing.
* Adding antibacterial SAUBERTAC NANO-20K provides long-lasting durability and excellent antibacterial performance.
Directions for Use
• For pad application, use 6–10% o.w.f. SAUBERTAC NANO-20/20K together with 2–3% o.w.f. companion resin.
• A sufficient add-on per unit area is required to achieve the desired deodorizing effect.
For low-basis-weight materials, process at a higher add-on level of 10 g/m² or more.
• A-400K is recommended as the companion resin. Because A-400K may affect the hand of the fabric, use it together with S-10 softener.
Applications
Cotton, synthetic fibers, and blends (for finishing outerwear, underwear, and home-textile products)
Performance Evaluation
Treated fabric: Knitted cotton (180 g/m²)
Treatment concentration: 6% aqueous solution of SAUBERTAC NANO-20/20K
2% aqueous solution of A-400K
2% aqueous solution of S-10
Treatment: Impregnation (100% wet pickup), drying (105°C × 5 min), and curing (130°C × 1 min)
Laundering method: 10 and 30 wash cycles in accordance with JIS L 0217, Method 103.
Deodorizing Performance
| Malodorous Gas Reduction Rate | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Ammonia*1 | Acetic Acid*2 | Isovaleric Acid*3 | |||||||
| Wash Cycles | 0 | 10 | 30 | 0 | 10 | 30 | 0 | 10 | 30 |
| NANO-20-Treated Fabric |
99% (10) |
96% (3.0) |
94% (4.0) |
92% (2.0) |
89% (2.8) |
87% (3.5) |
96% (1.998) |
94% (3.052) |
93% (3.666) |
| Blank | (70) | (26) | (51) | ||||||
| JTETC Criterion*4 |
≥70% (≥80%) |
≥80% (≥85%) |
≥85% (≥95%) |
||||||
Test method: Deodorization testing performed in accordance with the JTETC method.
*1 Ammonia (initial concentration: 100 ppm): values in parentheses are residual concentrations (unit: ppm).
*2 Acetic acid (initial concentration: 50 ppm): values in parentheses are residual concentrations (unit: ppm).
*3 Isovaleric acid: values in parentheses are peak-area values calculated by gas chromatography.
*4 JTETC criterion: sensory testing may be omitted when this criterion is met.
Antibacterial Performance
| Test Organism | Staphylococcus aureus | Inoculum Concentration (CFU/mL) | 3×105 | ||||
|---|---|---|---|---|---|---|---|
| Reference Fabric | N1 | N2 | Mean | Growth Value | |||
| After 0 h Incubation |
Viable Cell Count Log10 Value |
4.0×104 4.60 |
4.4×104 4.64 |
− 4.6 |
2.8 (Test Valid) |
||
| After 18 h Incubation |
Viable Cell Count Log10 Value |
2.4×107 7.38 |
2.6×107 7.41 |
− 7.4 |
|||
| Test Sample | Wash Cycles | Incubation Time | N1 | N2 | Mean | Bacteriostatic Activity Value | Assessment |
| NANO-20K-Treated Fabric | 0 | After 0 h Incubation |
3.8×104 4.58 |
3.9×104 4.59 |
− 4.6 |
− | − |
| After 18 h Incubation |
<20 ≤1.3 |
<20 ≤1.3 |
≤1.3 | ≥6.1 | Effective | ||
| 10 | After 0 h Incubation |
3.7×104 4.57 |
3.8×104 4.58 |
− 4.6 |
− | − | |
| After 18 h Incubation |
<20 ≤1.3 |
<20 ≤1.3 |
≤1.3 | ≥6.1 | Effective | ||
| 30 | After 0 h Incubation |
3.5×104 4.54 |
3.7×104 4.57 |
− 4.6 |
− | − | |
| After 18 h Incubation |
2.4×102 2.38 |
2.0×102 2.30 |
− 2.3 |
5.1 | Effective | ||
Measurement method: JIS L 1902:2008, Testing for Antibacterial Activity and Efficacy on Textile Products (quantitative method).
Test organism: Staphylococcus aureus NBRC 12732.
Assessment: A bacteriostatic activity value of 2.2 or higher indicates antibacterial effectiveness (JTETC criterion).
The test is valid when the growth value is 1.0 or higher.
Precautions
* Because of the nature of the product, component separation and settling may occur. Shake thoroughly before use.
* Note that the deodorizing component can precipitate when the treatment bath is acidic (pH 5.5 or below).
* When using with other auxiliaries, confirm compatibility in advance.
* Always test the relevant fastness properties of all dyes, including fluorescent dyes (fluorescent whiteness, lightfastness, rub fastness, etc.).
* Store sealed in a cool indoor location. Use promptly after opening.
Reference

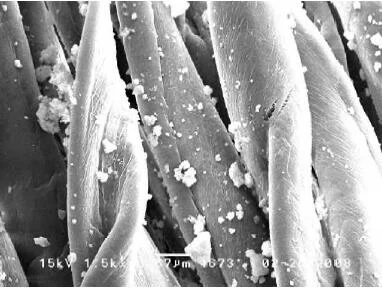

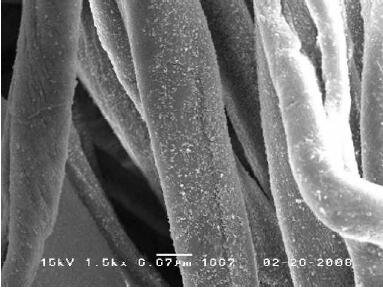

SEM Image of SAUBERTAC NANO-20-Treated Fabric
Image at ×1,500 Magnification
Conventional Product
